Customized 12mm Small DC Gear Motor High Torque Brass Material

Brand Name : HYX

Model Number : GM12-N20

Certification : Rohs

Place of Origin : Shenzhen, China

MOQ : 500 pcs

Price : 1.85~5 usd

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500000 pcs per month

Delivery Time : 15~20 days after pay

Packaging Details : 500 pcs per carton box with 30cm*20cm*15cm

Color : original color

Life Span : ≥1000h

Material : brass mounting plates and brass for gears

Model : GM12-N20/N30

Noise : ≤50dB

Power : <5W

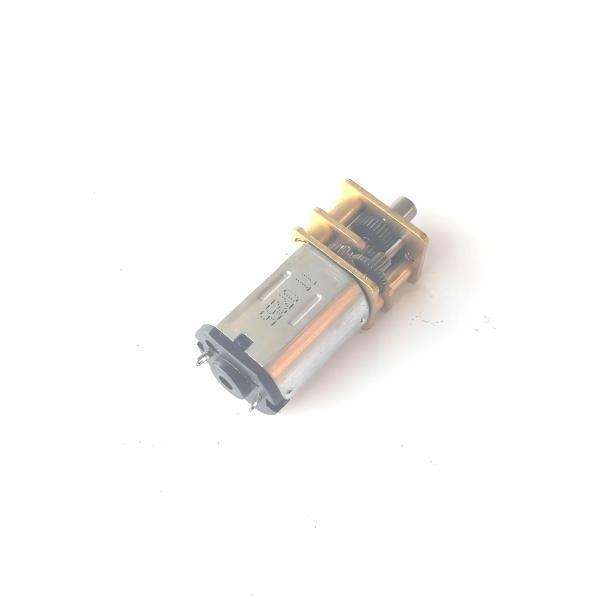

Product Name : 12X10mm gearbox plus N20 or N30 permanent magnet DC motor

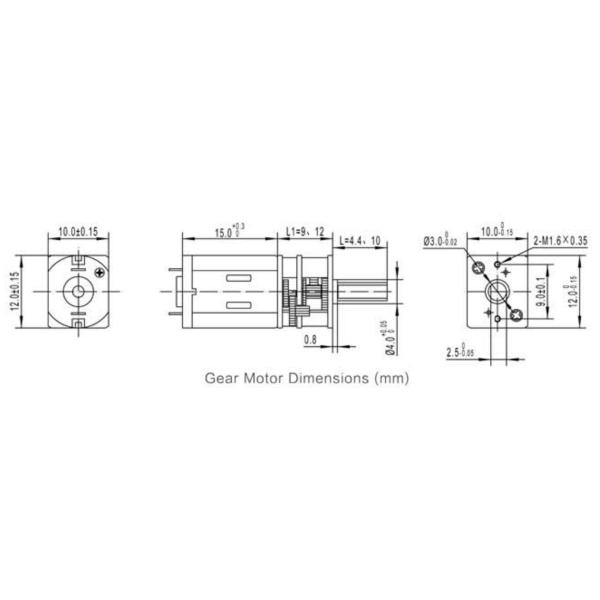

Size : 12X10X24mm

Speed : 10~1000 rpm

Temperature Range : -20℃~+60℃

Type : Spur Gear Motor Reducer

Voltage : 3~12VDC

Warranty : 1 Year

output torque : 0.08~3.0 kg.com

Contact Now

Item name: GM12-N20 or N30 DC gear motor, small size dc gear motor with low speed and big torque and competitive price

1) Small size dc gear motor with low speed and big torque

2) 12mm gear motor provide 0.1NM torque and more realiable.

3) Suitable to small diameter, low noise and big torque application

4) DC Gear motors can match encoder, 3 ppr

5) Available reduction ratio: 3, 5. 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Customized 12mm Small DC Gear Motor High Torque Brass Material

**Motor Technical Data**
Motor model No.	Rated Voltage (VDC)	No Load Speed (rpm)	No Load Current (mA)	Rated Speed (rpm)	Rated Torque (g.cm)	Rated Current (mA)	Output Power (w)	Stall torque (g.cm)	Stall current (A)
FF-N20VA-13110	2.4	14800	60	12000	2.5	200	0.31	13	1.20
FF-N20VA-09220	5.0	14800	30	12000	2.5	120	0.31	13	0.52
FF-N20VA-05430	12.0	16000	15	12500	3.0	60	0.35	13	0.25

**Gear motor Technical Data / Gearbox with motor: GM12-N20VA-13110-XXX**
Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
No load speed (rpm)	1450	470	285	145	96	69	58	50	38	14.5
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31	12
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
Max. momentary torerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

**Gearbox with motor: GM12-N20VA-09220-XXX**
Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
No load speed (rpm)	1450	470	285	145	96	69	58	50	38	14.5
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31	12
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5	1.0
Max. momentary torerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

**Gearbox with motor: GM12-N20VA-05430-XXX**
Reduction ratio	10	30	50	100	150	210	250	298	380	1000
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	12
No load speed (rpm)	1550	530	310	160	110	78	60	55	43	16
Rated speed (rpm)	1100	400	250	125	83	60	50	42	33	13
Rated torque (kg.cm)	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5	1.0
Max. momentary torerance torque (kg.cm)	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5	3.0

Customized 12mm Small DC Gear Motor High Torque Brass Material

Please kindly tell us your specific requirement and then we will offer you accordingly soon.
